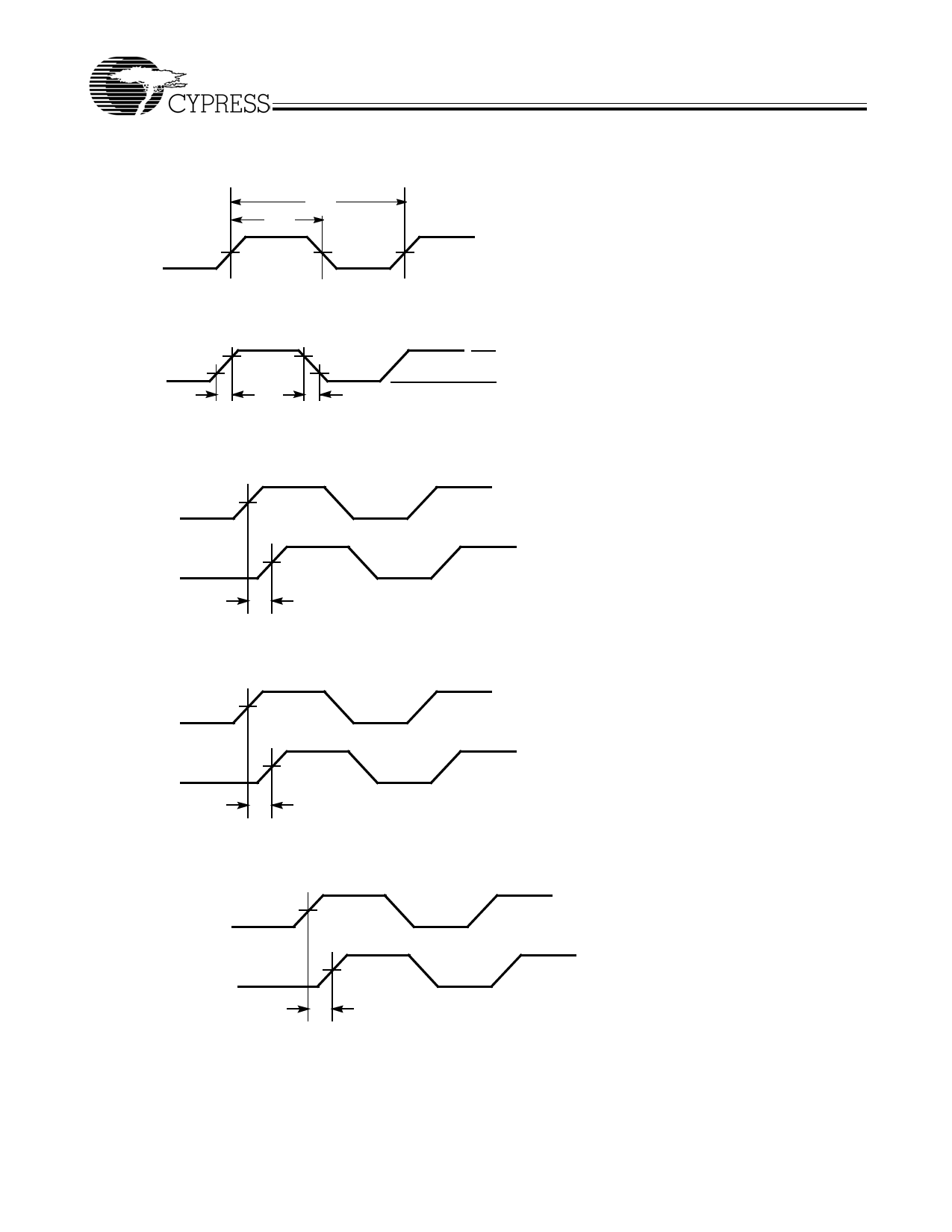

Switching Waveforms

Duty Cycle Timing

1.4V

t1

t2

1.4V

1.4V

All Outputs Rise/Fall Time

2.0V

OUTPUT 0.8V

t3

2.0V

0.8V

t4

3.3V

0V

Output-Output Skew

OUTPUT

1.4V

OUTPUT

t5

1.4V

Input-Output Propagation Delay

INPUT

VDD/2

OUTPUT

t6

Device-Device Skew

VDD/2

CLKOUT, Device 1

VDD/2

CLKOUT, Device 2

t7

VDD/2

Document #: 38-07140 Rev. *G
