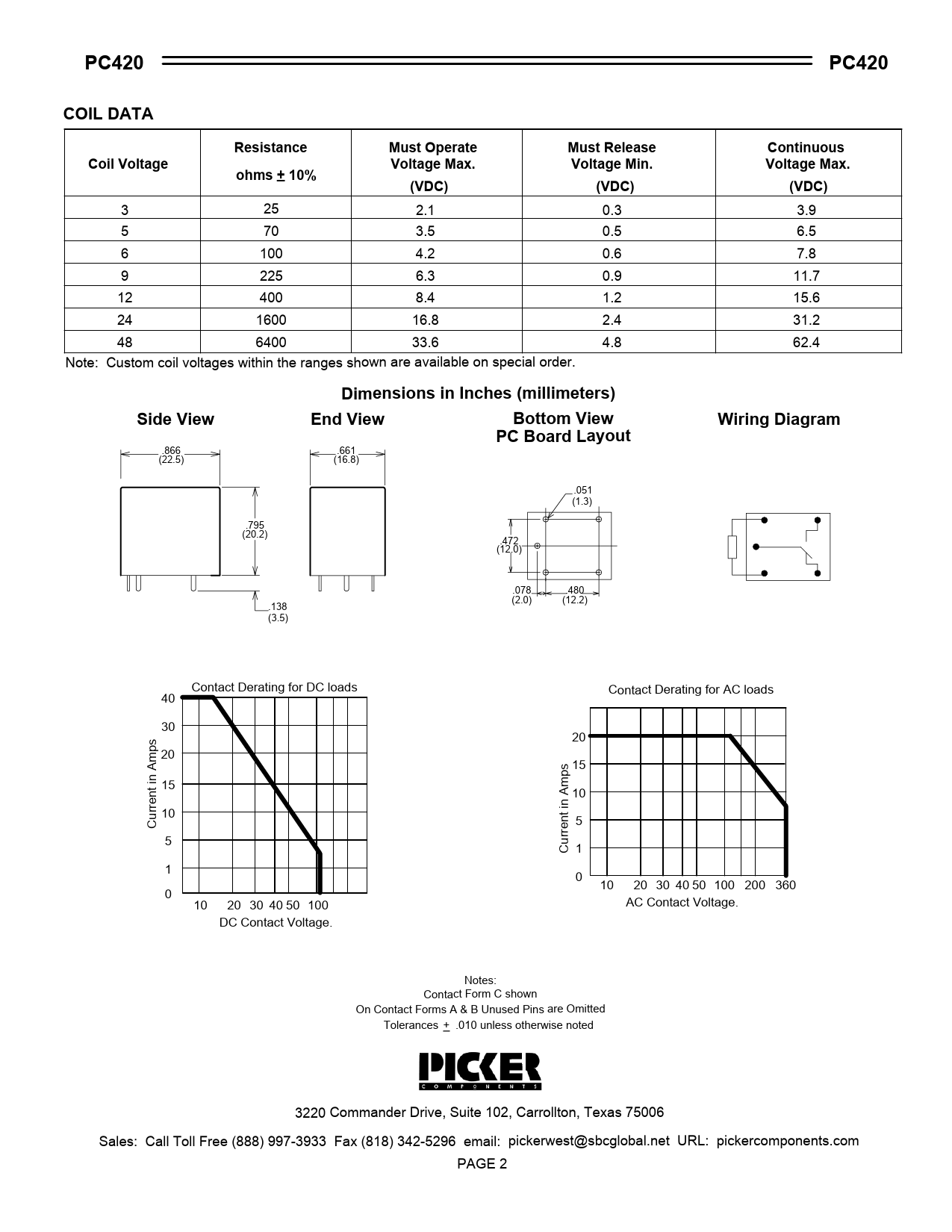

PC420
COIL DATA
Coil Voltage
Resistance
ohms +_ 10%
Must Operate
Voltage Max.
(VDC)
Must Release
Voltage Min.
(VDC)
3
25
2.1
0.3
5
70
3.5
0.5
6
100
4.2
0.6
9
225
6.3
0.9
12
400
8.4
1.2
24
1600
16.8
2.4
48
6400
33.6
4.8
Note: Custom coil voltages within the ranges shown are available on special order.
Side View
.866
(22.5)
Dimensions in Inches (millimeters)
End View
.661
(16.8)
Bottom View
PC Board Layout
.795
(20.2)
.472
(12.0)
.051
(1.3)
.138
(3.5)
.078
(2.0)
.480
(12.2)
PC420
Continuous
Voltage Max.
(VDC)
3.9
6.5
7.8
11.7
15.6
31.2
62.4
Wiring Diagram
Contact Derating for DC loads
40
30
20
15
10
5
1
0
10 20 30 40 50 100
DC Contact Voltage.
Contact Derating for AC loads
20
15
10
5
1
0
10 20 30 40 50 100 200 360
AC Contact Voltage.
Notes:
Contact Form C shown
On Contact Forms A & B Unused Pins are Omitted
Tolerances + .010 unless otherwise noted
