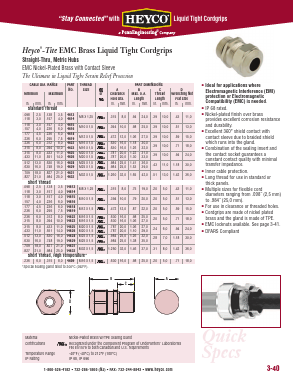

4609 Datasheet PDF - Heyco.

Heyco®-Tite EMC Brass Liquid Tight Cordgrips
Straight-Thru, Metric Hubs
EMC Nickel-Plated Brass with Contact Sleeve
The Ultimate in Liquid Tight Strain Relief Protection

• Ideal for applications where
   Electromagnetic Interference (EMI)
   protection or Electromagnetic
   Compatibility (EMC) is needed.
• IP 68 rated.
• Nickel-plated finish over brass
   provides excellent corrosion resistance
   and durability.
• Excellent 360° shield contact with
   contact sleeve due to braided shield
   which runs into the gland.
• Combination of the sealing insert and
   the contact socket guarantees a
   constant contact quality with minimal
   transfer impedance.
• Inner cable protection.
• Long thread for use in standard or
   thick panels.
• Multiple sizes for flexible cord
   diameters ranging from .098˝ (2,5 mm)
   to .984˝ (25,0 mm).
• For use in clearance or threaded holes.
• Cordgrips are made of nickel plated
   brass and the gland is made of TPE.
• EMC locknuts available. See page 3-41.
• DFARS Compliant
