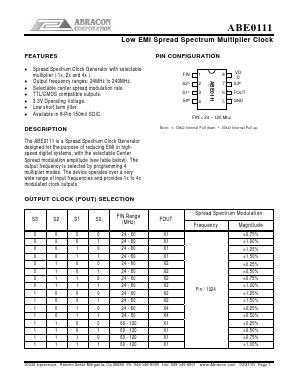

ABE0111 Datasheet PDF - Abracon Corporation

DESCRIPTION
The ABE0111 is a Spread Spectrum Clock Generator designed for the purpose of reducing EMI in high speed digital systems, with the selectable Center Spread modulation amplitude (see table below). The output frequency is selected by programming 4 multiplier modes. The device operates over a very wide range of input frequencies and provides 1x to 4x modulated clock outputs.

FEATURES
• Spread Spectrum Clock Generator with selectable multiplier ( 1x, 2x and 4x ).
• Output frequency ranges: 24MHz to 240MHz.
• Selectable center spread modulation rate.
• TTL/CMOS compatible outputs.
• 3.3V Operating Voltage.
• Low short term jitter.
• Available in 8-Pin 150mil SOIC.
