Description

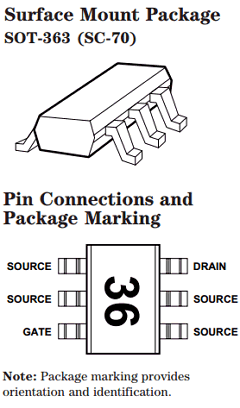

The Hewlett-Packard ATF-36163 is a low-noise Pseudomorphic High Electron Mobility Transistor (PHEMT), in the SOT-363 (SC-70) package. When optimally matched for minimum noise figure, it will provide a noise figure of 1 dB at 12 GHz and 0.6␣ dB at 4 GHz.

FEATUREs
• Low Minimum Noise Figure:
1 dB Typical at 12 GHz
0.6 dB Typical at 4 GHz
• Associated Gain:
9.4 dB Typical at 12 GHz
15.8 dB Typical at 4 GHz
• Maximum Available Gain:
11 dB Typical at 12 GHz
17 dB Typical at 4 GHz
• Low Cost Surface Mount Small Plastic Package
• Tape-and-Reel Packaging Option Available

APPLICATIONs
• 12 GHz DBS Downconverters
• 4 GHz TVRO Downconverters
• S or L Band Low Noise Amplifiers
