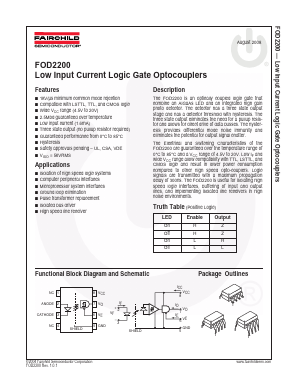

FOD2200 Datasheet PDF - Fairchild Semiconductor

Description
The FOD2200 is an optically coupled logic gate that combine an AlGaAs LED and an integrated high gain photo detector. The detector has a three state output stage and has a detector threshold with hysteresis. The three state output eliminates the need for a pullup resistor and allows for direct drive of data busses. The hysteresis provides differential mode noise immunity and eliminates the potential for output signal chatter.

FEATUREs
■ 1kV/µs minimum common mode rejection
■ Compatible with LSTTL, TTL, and CMOS logic
■ Wide VCC range (4.5V to 20V)
■ 2.5Mbd guaranteed over temperature
■ Low input current (1.6mA)
■ Three state output (no pullup resistor required)
■ Guaranteed performance from 0°C to 85°C
■ Hysteresis
■ Safety approvals pending – UL, CSA, VDE
■ VISO = 5kVRMS

APPLICATIONs
■ Isolation of high speed logic systems
■ Computer peripheral interfaces
■ Microprocessor system interfaces
■ Ground loop elimination
■ Pulse transformer replacement
■ Isolated bus driver
■ High speed line receiver
