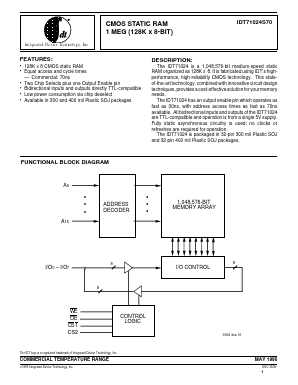

IDT71024S70 Datasheet PDF - Integrated Device Technology

DESCRIPTION:
The IDT71024 is a 1,048,576-bit medium-speed static RAM organized as 128K x 8. It is fabricated using IDT’s high-performance, high-reliability CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for your memory needs.

FEATURES:
• 128K x 8 CMOS static RAM
• Equal access and cycle times
   — Commercial: 70ns
• Two Chip Selects plus one Output Enable pin
• Bidirectional inputs and outputs directly TTL-compatible
• Low power consumption via chip deselect
• Available in 300 and 400 mil Plastic SOJ packages
