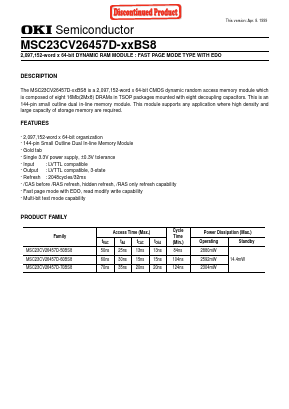

MSC23CV26457D Datasheet PDF - Oki Electric Industry

DESCRIPTION
The MSC23CV26457D-xxBS8 is a 2,097,152-word x 64-bit CMOS dynamic random access memory module which is composed of eight 16Mb(2Mx8) DRAMs in TSOP packages mounted with eight decoupling capacitors. This is an 144-pin small outline dual in-line memory module. This module supports any application where high density and large capacity of storage memory are required.

FEATURES
• 2,097,152-word x 64-bit organization
• 144-pin Small Outline Dual In-line Memory Module
• Gold tab
• Single 3.3V power supply, ±0.3V tolerance
• Input : LVTTL compatible
• Output : LVTTL compatible, 3-state
• Refresh : 2048cycles/32ms
• /CAS before /RAS refresh, hidden refresh, /RAS only refresh capability
• Fast page mode with EDO, read modify write capability
• Multi-bit test mode capability
