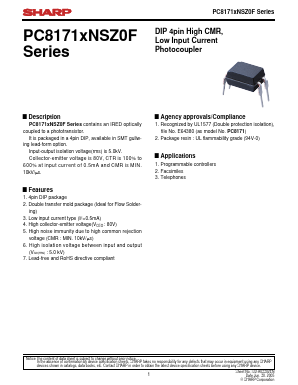

PC81710NIP0F Datasheet PDF - Sharp Electronics

■ Description
PC8171xNSZ0F Series contains an IRED optically coupled to a phototransistor.
It is packaged in a 4pin DIP, available in SMT gullwing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V, CTR is 100% to 600% at input current of 0.5mA and CMR is MIN. 10kV/µs.

■ Features
1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Soldering)
3. Low input current type (IF=0.5mA)
4. High collector-emitter voltage(VCEO : 80V)
5. High noise immunity due to high common rejection voltage (CMR : MIN. 10kV/µs)
6. High isolation voltage between input and output (Viso(rms) : 5.0 kV)
7. Lead-free and RoHS directive compliant

■ Applications
1. Programmable controllers
2. Facsimiles
3. Telephones
