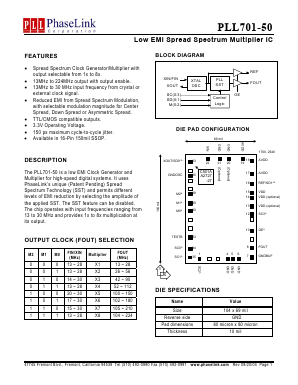

PLL701-50 Datasheet PDF - PhaseLink Corporation

DESCRIPTION
   The PLL701-50 is a low EMI Clock Generator and Multiplier for high-speed digital systems. It uses PhaseLink’s unique (Patent Pending) Spread Spectrum Technology (SST) and permits different levels of EMI reduction by selecting the amplitude of the applied SST. The SST feature can be disabled. The chip operates with input frequencies ranging from 13 to 30 MHz and provides 1x to 8x multiplication at its output.

FEATURES
• Spread Spectrum Clock Generator/Multiplier with output selectable from 1x to 8x.
• 13MHz to 224MHz output with output enable.
• 13MHz to 30 MHz input frequency from crystal or external clock signal.
• Reduced EMI from Spread Spectrum Modulation, with selectable modulation magnitude for Center Spread, Down Spread or Asymmetric Spread.
• TTL/CMOS compatible outputs.
• 3.3V Operating Voltage.
• 150 ps maximum cycle-to-cycle jitter.
• Available in 16-Pin 150mil SSOP.
